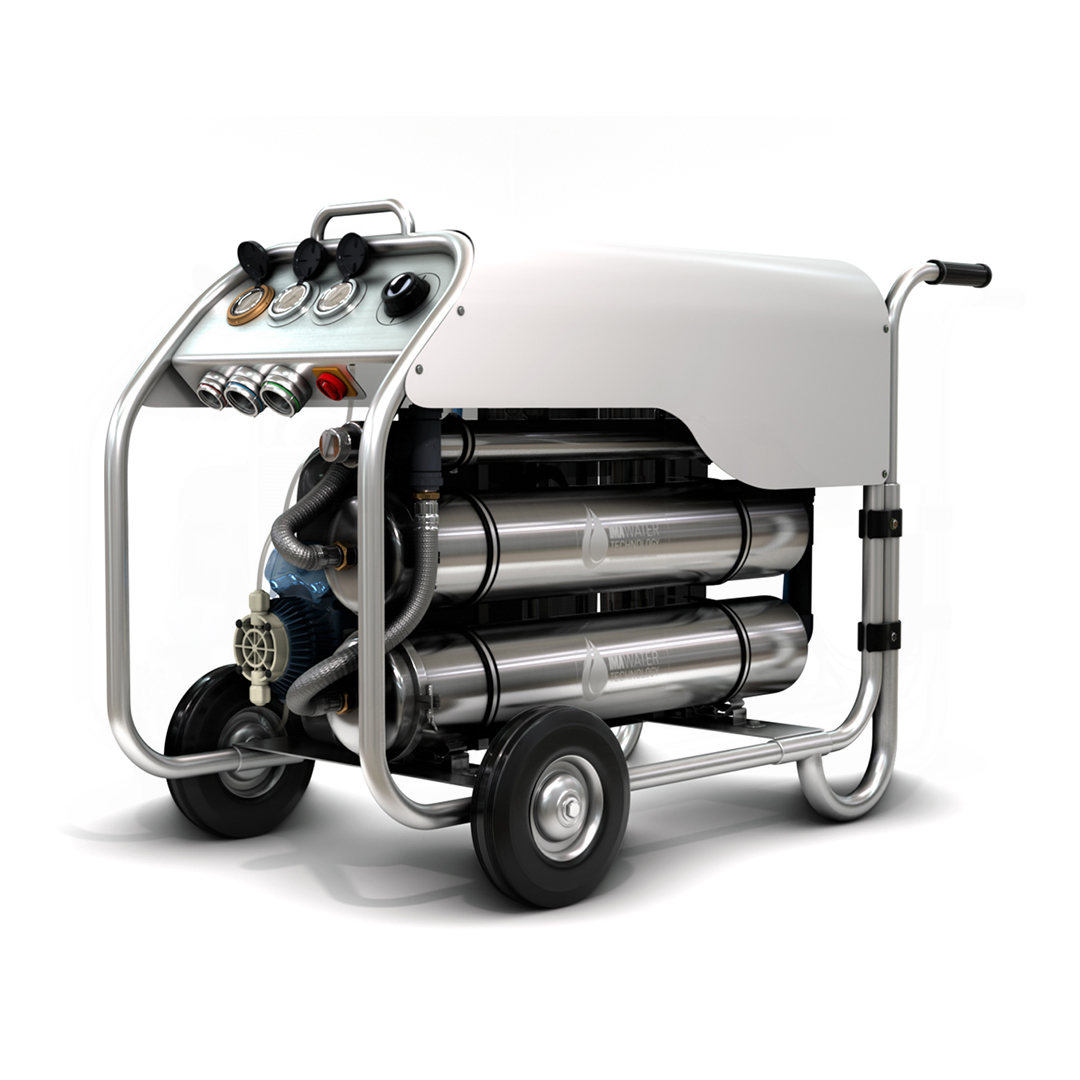

UFE3000

Portable ultrafiltration 3m³/h

IMAUFE3000 portable water treatment unit uses the latest ultrafiltration membrane technologies. The system achieves, with very little energy, the potabilisation of natural fresh water sources, retaining particles, microorganisms, viruses, turbidity, microplastics and chemical residues according to the regulations indicated by the World Health Organisation and by national regulations. All this equipment is integrated in a compact, robust and easy to handle frame, built entirely in stainless steel for an agile and intuitive installation, even in rough terrain and adverse situations.

Technical data:

• Outlet: 3000 l/h
• Height: 950 mm
• Width: 750 mm
• Length: 1400 mm
• Module weight: 150 kg
• Power consumption: 700 W
• Daily max. outlet: 72.000 l/day
• Connection: 230V 50Hz/60Hz

Included equipment:

• Electrical panel - Start-up, shutdown and monitoring

• Solids roughing - 2 Filtration units of 25 and 50 microns

• Raw water pump - With cage, float and 30m hose
• Self-supporting frame - With handle and wheels for easy transport
• Hoses and accesories - For installation, connection and supply
• Disinfection system - By ultraviolet and hypochlorite system
• 2 Ultrafiltration membranes - Washable and in a stainless steel container
