OE700

Portable osmosis 0,7m³/h

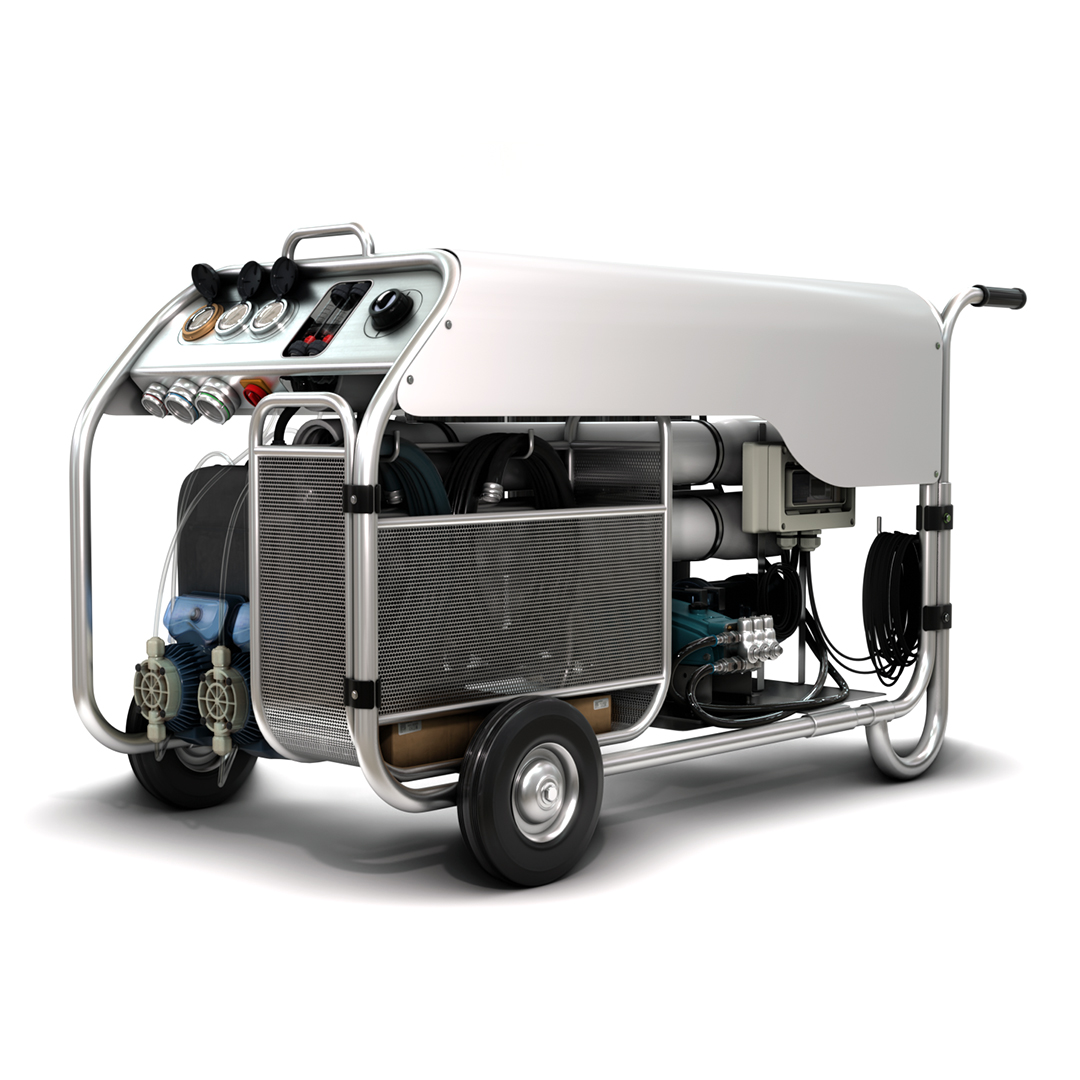

The IMAOE7000 portable water treatment unit uses the latest technologies in reverse osmosis. The system achieves drinking water purification by retaining particles, salts, microorganisms, viruses, turbidity, microplastics and chemical residues according to the regulations indicated by the World Health Organisation. The equipment is integrated in a compact, robust and easy to handle frame, built entirely in stainless steel for an agile and intuitive installation, even in rough terrain and adverse situations

Technical data:

• Outlet: 400-700 l/h
• Height: 950 mm
• Width: 900 mm
• Length: 1700 mm
• Module weight: 200 kg
• Power consumption: 9 kW
• Max. outlet: 9,600 - 16,800 l/day
• Connection: 230V 50Hz/60Hz

Included equipment:

• Electrical panel - With conductivity and pressure control

• Pull-out drawer - With hoses, spare parts and accesories

• Solids roughing - 3 Filtration units of 5, 25 and 50 microns

• Raw water pump - With cage, float and 30m hose

• Self-supporting frame - With handle and wheels for easy transport

• Disinfection system - By hypochlorite dosing
• 3 Osmosis membranes - For high salinity with high pressure pump
