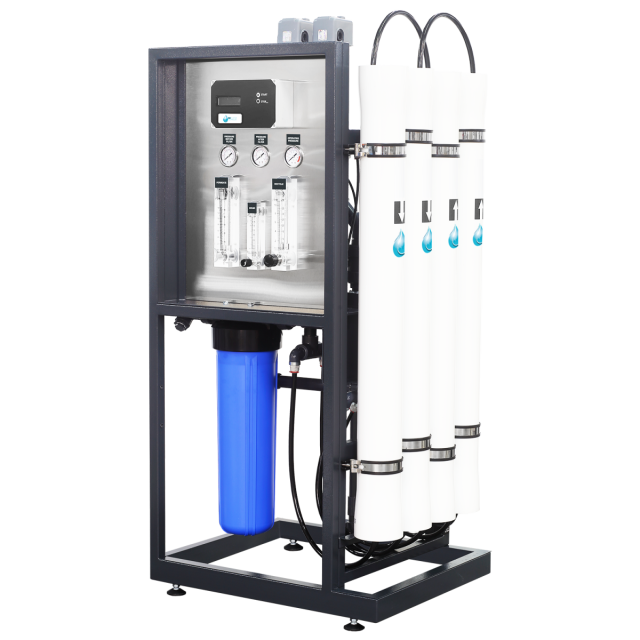

IMA cRO1000

Commercial reverse osmosis 1,0 m3/h

Compact reverse osmosis unit in self-supporting steel frame for a salt content of less than 3000 mg/l

IMA-cRO commercial desalination systems have been developed to obtain high quality purified water with a continuous 24 h/day operation.

The design of our membrane desalination plants is focused on guaranteeing a long operating life.

Applications: Private homes, restaurants, laboratories, greenhouses, steam generators, hotels, spas, etc.

Description: Compact and lightweight commercial reverse osmosis system.

Key features:

1. Reliable performance due to high quality engineering and components.

2. Easy to use thanks to its intelligent architecture and original design.

3. Up to 50% energy savings* - due to Dow membranes. Filmtecтм XLE and Grundfos Pumps.
4. CE marked and safety confirmation required by EC New Approach Directives.
5. Single connection 230V 50Hz - Power 2,0 kW
6. Manuals and custom installation diagrams

Main components:

• Valves, instrumentation and steel frame included and integrated.

• Dow Filmtecтм ХLE -4040 membrane.

• Grundfos high pressure pump.
• Polypropylene sediment filter, 5 micron, 4.5x10".
• Electric panel with IMA Controller.
• Recovery rate of 75% according to SS feed and temperature parameters.
• Conductivity sensor.
• European solenoid valves.
• Connections/piping.
• Float switch, raw water and permeate pressure switches.
• Wooden packing box.

Options:

• Anti-scaling dosing system.
• Membrane rinsing with permeate.
• Raw water mixing.
