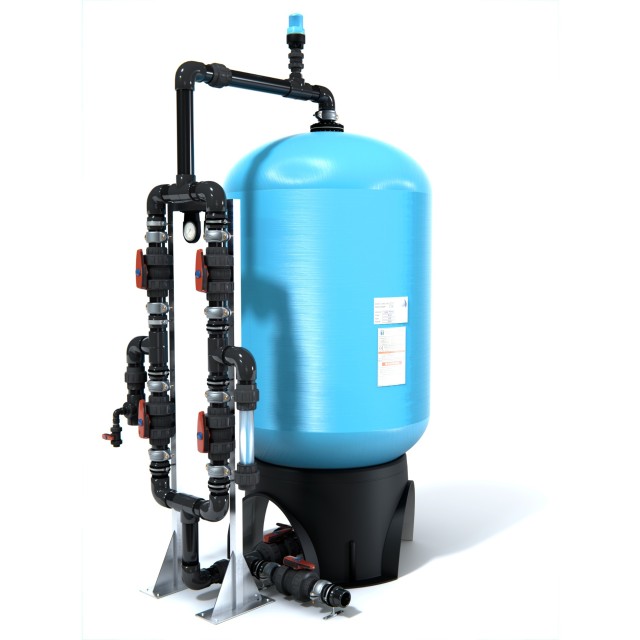

IMA-AS Arsenic reduction loading filter, manually operated to remove arsenic and heavy metals from water.

These IMA water filtration models work with a manual multivalve front for filter washing. They are specially indicated for well water with low solids load and for installations where a low failure rate and minimum electrical maintenance is required.

If you require more technical information on how to remove arsenic from water you can enter the technical data section.

Manufacturing data of a manual valves front arsenic filter

• Connections:
  • 4 inch Filters diameter 780mm.
  • 6 inch filters diameter 1088, 1250, 1600mm.
• Maximum working pressure 150 psi.
• Working temperature 0ºC to 35ºC.
• Limits of use:
  • Recommended PH: 6.5.
  • High amounts of sulfates, arsenates, phosphates and silicates. May create screen and reduce performance.
• Complete water analysis recommended. Additional treatment may be necessary.
• Body constructed of fiberglass reinforced polyester.
• Manual open/close valves for working and flushing.
• Inner distributors suitable for the design flow rate.
• Complete with IMA-AS filtering load to treat arsenic in water.

Equipment included in the arsenic removal filters manual valve front

• Valve front with inlet/outlet control gauges.
• Arsenic absorbing filter bed IMA-AS
• Discharge port for replacement of 4" filter bed in 1088, 1250 and 1600 diameter filters.
• Upper and lower strainer kit.

Contact us without obligation by phone or email for any technical advice or purchase of our equipment.
